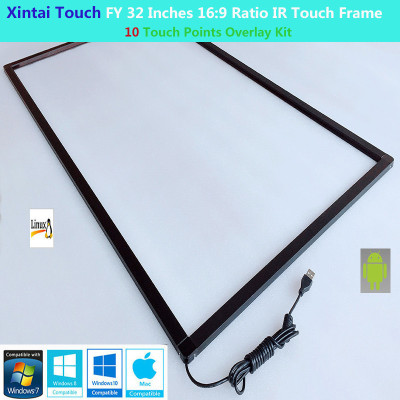

Xintai Touch FY 32 Inches 10 Touch Points 16:9 Ratio IR Touch Frame Panel Plug &amp Play NO Glass

Xintai Touch FY 32 Inches 10 Touch Points 16:9 Ratio IR Touch Frame Panel Plug & Play (NO Glass)
$90.00 $100.00 - $10.00 $90.00 (tax excl.)
Security policy
SSL and higher firewall provided the data security
Transmission policy
Commonly we use Fedex and UPS shipping out the package Then the package can be delivery soon
Return policy
To initiate a return, you can contact us via Email. If your return is accepted, please let us know

Xintai Touch FY 32 Inches 16:9 Ratio IR Touch Frame Panel Plug&Play (NO Glass)



Specification :





Principle of Technology True multi-point infrared TOUCH Technology
Active Area (Display Device) 17''-98''
Screen Thickness 8mm(Without glass thickness)
Border Width 19mm
Screen Structure The transmitting and receiving control circuit and controller are installed in the aluminum alloy frame.3 ~ 5mmTempered glass
Touch resolution 32768x32768
Positioning Accuracy <2mm
Response time <7 MS
Transmittance ≥90% (Press?ASTM D1003-92Standard)
Brightness ≥350cd/m2
Touch Media Fingers, gloves, pens and other opaque objects
Touch pressure No need
Durability Anti-scratches can withstand more50,000,000More than one touch.
Surface Hardness Mo's7.Class, tolerable1 kgSteel Balls1.Meters fall without breaking(Test Methods see Standard
GB9963-1988AndIEC-1999 @ 60950)
Even if it breaks, the debris will not hurt the human body.
MTBF More than 5000Hours.
OS supported Windows XP/7/8, Linux, Android, UBUNTU
Connection Mode GeneralUSB2.0
Temperature range Operating Temperature:-20 °C ~ 70 °C
Storage Temperature:-20 °C ~ 70 °C
Humidity range Working humidity: 0% ~ 90% RH (No dew)
Storage humidity: 0% ~ 95% RH (No dew)





Product  Size DataSheet List:





logo_product_list



Applications:



• POS
• ATM / Airport
• Desktop touch monitor
• Education Display
• Indoor/outdoor kiosk
• Ticket machine

• In-vehicles and transportation

• Medical instrument
• Industrial control systems



product_applied



User Manual:

assembled-user-manualassembled-user-manuallogo_FB-User-Manual




Logo-New-FB-User-Manual



Warranty:





We offer 1 year free warranty for hardware.





Tax and Duties:



1. For customers from South America Market, we need you provide Tax Number before shipment.



Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number



2.The goods  price is not  including the destination tariffs  Different coutries have different customs tariffs, it is



buyer's responsibility.







Shipment and Payment:



1.For Payment---------we accept Western Union, TT, Paypal.



2. BY DHL/FEDEX/UPS------(It's commonly Takes 5-7 working days to deliver to destination if everything go well



without customs clearance problem).



3. By EMS --------(normally takes 7-15 working days ------------It's shipping to Russia and Ukaine).



4. By Russia-Line--------(It will take about18-25 days shipping to Russia).



5. In commonly Country (except russia,Ukaine,Brazil)------- below 43 inch (including 43 inch) we will choose DHL to



deliver the package;above 43 inch will choose fedex or ups,please kindly know.



6. Brazil Customer --------



①  Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used  for



customs clearance



②  Brazil customer should tell us what value should be decalred for customs clearance



As brazil customs clearance problems.



shipping





Shipping Method:



We ship in tube package to save shipping cost. We also can ship it with glass as well. Contact us.



1. Disassembly



2. Without Glass



3. In tube Shipping








Facotry Produced and High Quality Guarantee




2251832783552623
48 Items
Brand Name
Xintai Touch
Interface Type
USB
USB
Package
Yes
Type
Infrared
Products Status
STOCK
Model Number
XT-IR-FY32
Display Size
32''
Input Method
Finger or gloved hand (rubber ,cloth or leather)
Agency Approvals
CE, FCC, Rohs
size
32 Inches
Fit in with
Panel display device
Resolution(Interpolation)
4096*4096
