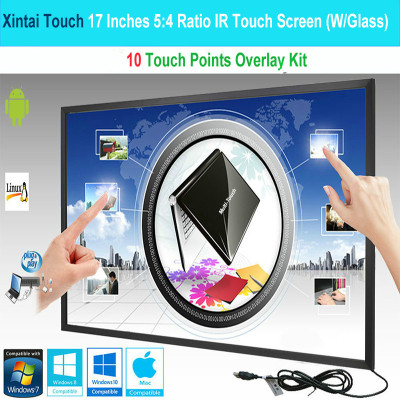

Xintai Touch 17 Inch 5:4 Ratio 10 Touch Points IR Touch Screen,Infrared Touch Panel With Glass
SSL and higher firewall provided the data security
(Option of customer assurance modules)
To initiate a return, you can contact us via Email. If your return is accepted, please let us know
Xintai Touch 17 Inch 5:4 Ratio 10 Touch Points IR Touch Screen,Infrared Touch Panel With Glass
Specification :
|
Active Area (Display Device) |
31.5″~ 98'' |
|
|
Housing |
Aluminum Alloy |
|
|
Housing Color |
Black |
|
|
Glass |
Standard |
NO Glass |
|
Option |
Custom glass is available on request. |
|
|
Touch Interpolation |
32767 (W)×32767 (D) |
|
|
Response Time |
<=15ms |
|
|
Touch Accuracy |
±2mm(over 90% Area) |
|
|
Touch Input Method |
Finger, Finger of gloved hand, Opaque objects |
|
|
Output Form |
Coordinate Value |
|
|
Touch Durability |
Unlimited |
|
|
Available Object Sizes for Touch |
≥Φ7mm |
|
|
Interface |
A -Type USB/M |
|
|
TTL Serial Port |
||
Electrical Specification:
|
Scan Rate |
125HZ |
|
Communication |
USB2.0 Full Speed |
|
Transmission Rate |
12Mbps |
|
PowerSupply Mode |
USB |
|
Supply Voltage |
DC+5V±5％ |
|
Operating Current |
<300mA |
Storage Conditions：
|
Storage Temperature |
-10℃～40℃ |
|
Storage Humidity |
30%～70% RH |
|
Storage Time |
3 Months |
Reliability Testing：
|
Operating Temperature |
-10℃~50℃ |
|
Storage Temperature |
-20℃~60℃ |
|
Humidity |
Operating:10%~85%RH, on-condensing |
|
Storage:10%~ 90% RH, non-condensing |
|
|
ESD |
EN 6100-4-2 2008: 3 level. 4 KV contact discharge and 8 KV air discharge. |
|
Anti-light Interference |
Excellent |
Software Specification：
|
Firmware Upgrade |
USB Upgrade: Windows 7, Windows XP |
|
Multi Touch |
Windows 7 Ultimate, Windows 7 Professional, Windows 7 Home Premium, Android (need patch in kernel code), Windows 8, Windows 8 Pro, Windows 8 Enterprise * Performance will be impacted if mentioned systems do not support multi-touch function or have no copyrights. And Windows 8 must be non OEM version. |
|
Single Touch |
Windows 7,Windows XP, Vista, Linux, Mac, Android, and WinCE and Chrome |
TTL Serial Port Connector：
|
pin No. |
Definition |
Description |
|
|
1 |
VCC |
+5V |
|
|
2 |
RXD |
Serial（TTL）data receiving |
|
|
3 |
TXD |
Serial（TTL）data transmitting |
|
|
4 |
GND |
Ground |
Product Size DataSheet List：
Applications：
• POS
• ATM / Airport
• Desktop touch monitor
• Education Display
• Indoor/outdoor kiosk
• Ticket machine
• In-vehicles and transportation
• Medical instrument
• Industrial control systems
User Manual：
Warranty:
We offer 1 year free warranty for hardware.
Tax and Duties:
1、 For customers from South America Market, we need you provide Tax Number before shipment.
Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number
2、The goods will be delcared with low value on the invoice, purpose is to reduce your tariffs, but our price is not
including the destination tariffs Different coutries have different customs tariffs, it is buyer's responsibility.
Shipment and Payment:
1、For Payment---------we accept Western Union, TT, Paypal.
2、 BY DHL/FEDEX/UPS------(It's commonly Takes 5-7 working days to deliver to destination if everything go well
without customs clearance problem).
3. By EMS --------(normally takes 7-15 working days ------------It's shipping to Russia and Ukaine).
4. By Russia-Line--------(It will take about18-25 days shipping to Russia).
5. In commonly Country (except russia,Ukaine,Brazil)------- below 43 inch (including 43 inch) we will choose DHL to
deliver the package;above 43 inch will choose fedex or ups,please kindly know.
6. Brazil Customer --------
① Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used for
customs clearance
② Brazil customer should tell us what value should be decalred for customs clearance
As brazil customs clearance problems.
Shipping Method:
We ship in tube package to save shipping cost. We also can ship it with glass as well. Contact us.
1. Disassembly
2. Without Glass
3. In tube Shipping
Facotry Produced and High Quality Guarantee
- Brand Name
- Xintai Touch
- Interface Type
- USB
- Package
- Yes
- Type
- Infrared
- Products Status
- STOCK
- Model Number
- XT-IR-17-2
- Display Size
- 17 inch
- is_customized
- Yes
- General Size
- 15 inch to 159 inch
- Linearity Error
- 1.5mm
- Response Speed
- 15ms
- Input Method
- Finger or gloved hand (rubber ,cloth or leather)
- Minimum Touch Object
- 2.5 mm X 2.5 mm
- Light Transmission
- 92%
- Agency Approvals
- CE, FCC, Rohs
- Operation System
- windows 7, windows8, Android, Linux
- Item
- 17 Inch IR Multi Touch Screen
